MINI W11 R53/R52 Crate Engine Build - Config 2

Lohen has been repairing and upgrading the W11 engine found on MINI Cooper S, JCW and GP R53 and R52 models since the company started in 2004. Using this knowledge Lohen now offers crate engines that are built for various uses and tuning levels.

The Lohen W11 Config 2 Crate Engine Build is a package suitable for MINI owners looking for the very best from their R53 Cooper S, John Cooper Works or GP model. Also suitable for the R52 Cooper S and John Cooper Works models.

The Configuration 2 W11 crate engine features Lohen's big valve ported cylinder head that is built with Supertech forged valvetrain, performance valve spring, and titanium retainers.

As with the Configuration 1 build, the bottom end uses Supertech forged pistons and Bridgeway connecting rods.This is pulled together with ARP 2000 main bolts, cylinder head bolts and cam sprocket bolts with new OEM specification parts such as gaskets, lifters, etc. High quality King Racing engine bearings are used in the construction.

All engines are re-built in-house by Lohen to OEM or higher specification.

Cylinder bores are checked for ovality and are either honed or bored-and-honed for the right size piston to the correct tolerance. Cranks and camshafts are checked for size, wear and damage before they are re-used and, where appropriate, balanced to 0.1gram.

Please note - Lohen Crate Engines are supplied as timed-up bare units without bolt-on ancillaries. The engines are therefore shipped dry and require final assembly of ancillaries and fluids prior to installation and start.

If required, Lohen can supply a fully built engine for an additional charge. We also offer professional in-house installation and running-in-service at our workshop.

W11 Engine Installation kit is suggested when installing a Lohen Crate Engine. Click Here For full details about the Lohen W11 Crate Engine Installation Kit - in summary, this includes 1 x running oil, 2 x engine oil, oil filters, supercharger oil change, gearbox oil change, gaskets, coolant, and key service components for renewal such as a thermostat, spark plugs, injector servicing knock sensor, and water pump.

Exchange Donor Unit Surcharge

Lohen will apply a surcharge to every engine sold unless a donor unit is supplied and it is deemed to be in re-buildable condition.

The Lohen Configuration 2 engine is constructed with the following components and processes to ensure a precision built

Bottom end

• Supertech forged pistons piston rings
• Supertech Piston Rings
• Bridgeway forged connecting rods with ARP 2000 connecting rod bolts
• King Racing Big end bearings
• King Racing Main bearing
• New sump
• Block boring
• Block cleaning and assembly

Assembly kit components

• ARP Head bolt kit
• ARP Mains Bolt kit
• ARP Cam sprocket bolt
• Lohen Lightweight Crank Pulley
• Lohen Rocker cover bolts
• Small head bolts
• Full gasket kit
• Timing chain kit
• Oil pump
• Core plug 35mm
• Core plug 16mm
• Sump plug

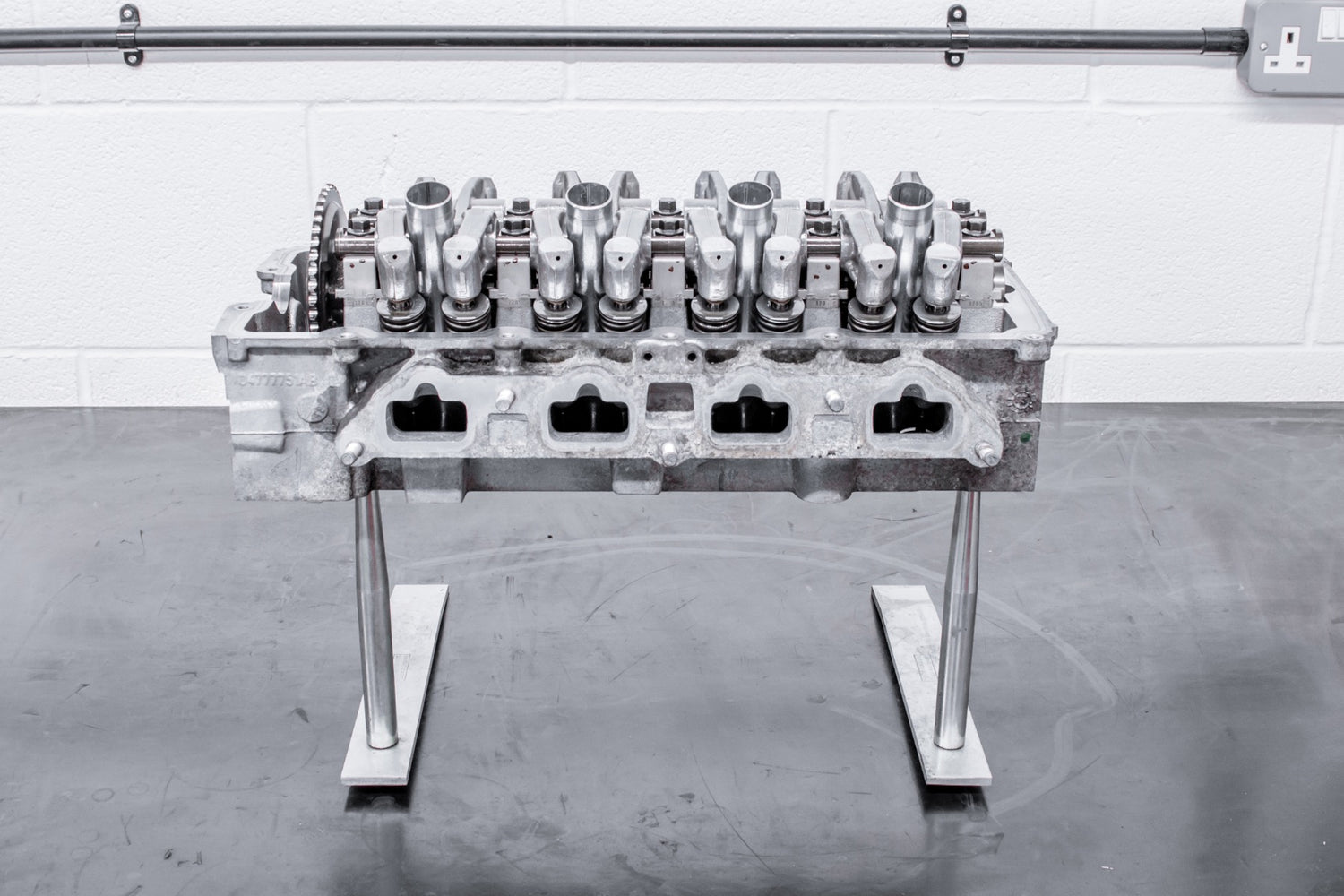

Head

• Supertech forged black nitride coated inlet valves - 1.8 mm oversized
• Supertech forged inconel exhaust valves - 2.3 mm oversized
• Bronze valve guides

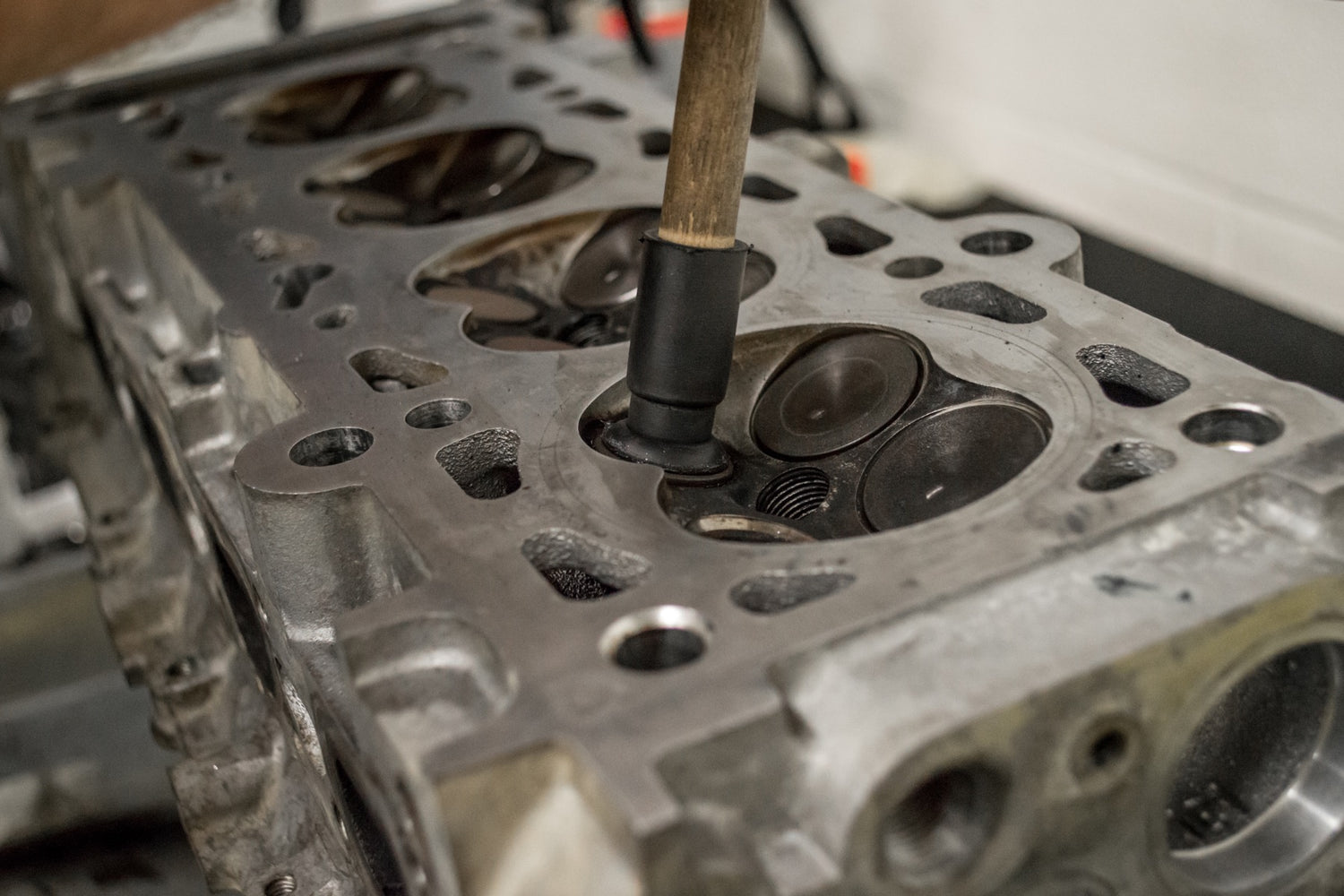

• Valve seats are replaced and cut for the Supertech valve profile and lapped as required
• Pressure test
• Head skim
• Valve stem seals
• Head cleaning and assembly

Lohen offers professional, in-house fitting for all products at our workshop in Eccleshall, Staffordshire. Here are the important things you need to know:

Fitting Cost - £1500 - this includes dyno time to run in the engine.

Fitting Time - 20 hours

Required Additional Items/Services - W11 Engine Installation kit is suggested when installing a Lohen Crate Engine. Click Here For full details about the Lohen W11 Crate Engine Installation Kit - in summary, this includes 1 x running oil, 2 x engine oil, oil filters, supercharger oil change, gearbox oil change, gaskets, coolant, and key service components for renewal such as a thermostat, spark plugs, injector servicing knock sensor, and water pump.

Lohen Recommends - taking the opportunity to add Samco coolant hoses and inspect the clutch and flywheel while the engine and gearbox are out.

Why do we apply a surcharge?

A surcharge is charged because Lohen reconditions and re-use certain components, such as the head, crank and the crankcase. We do this to reduce costs to customer and components will only be used if they pass strict inspection criteria. Any wearable components are completely replaced in the upgrade process.

How it works

The surcharge applies when a donor engine is not supplied back to Lohen or the condition of the donor engine is deemed by Lohen to be beyond re-buildable (i.e. major damage to the head, crank, block bores or external parts of the engine.)

Once the donor engine is received Lohen will assess and measure the unit for tolerances and issue an appropriate refund of the surcharge within 7-10 working days. Should certain components within the donor engine be deemed unusable the surcharge will be only partially refunded. Please contact the sales team for full information.
