Darton Sleeves  |  SKU: 800800

Darton Sleeves Set For N14 MINI Engines

£1,500.00 GBP

Features

  • Improved block strength
  • Improved cooling
  • Increased boost and horsepower potential
  • Superior oil and compression control
  • Superior cylinder sealing and ring wear
  • Bulletproof Darton ductile iron

Machining of the Darton sleeves will be required to install pistons.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Delivery charges are based on weight (kgs) within the UK and Europe, International orders are based on volumetric weight and may be more than what you pay at checkout. Charges are the same when ordering online, by email or over the phone and include VAT. Items if in stock are dispatched same day (Before 2pm) and sent on a next working day service and includes insurance cover. See our main section below for more details.

Sample Shipping Costs

UK

Orders under £200 are sent by a DHL Express service that is usually a next day service and costs start from £12 depending on weight.

Orders over £200 are sent for free by a DHL Express service that is usually a next day service

Europe and Rest of the World

For European and rest of the orders, parcels are sent by DHL and costs start from £12 up to 30kg per box. Delivery time takes between 3-7 working days depending on country.

Please note:

Our shipping prices are occasionally subject to change. Lohen reserves the right to contact you with a shipping amendment if necessary.

The cleint is responsible for all import duites, taxes and processing fees which are payable to the carrier or carrier agent prior to delivery.



Returns & Refunds

Returns

Refunds are available within 7 days after delivery for products that are unused and are in original packaging. Special order goods are non-refundable. Products that are damaged in transit to or from the customer can be refunded up to 14 days after the product has been delivered.

Refunds

Products returned to us in imperfect, non-resalable condition will not qualify for a refund. Products that are faulty due to the manufacturing process are refundable under the manufacturer's warranty for a limited time specified in the manufacturer's terms and conditions. These do not apply if the product has been fitted incorrectly or misused, motorsport use could further reduce the manufacturer's warranty.

If an order is cancelled or refunded the buyer is responsible for the return of the goods to such address as directed by the supplier and is at the consumer's sole expense. This does not affect your statutory rights.

Description

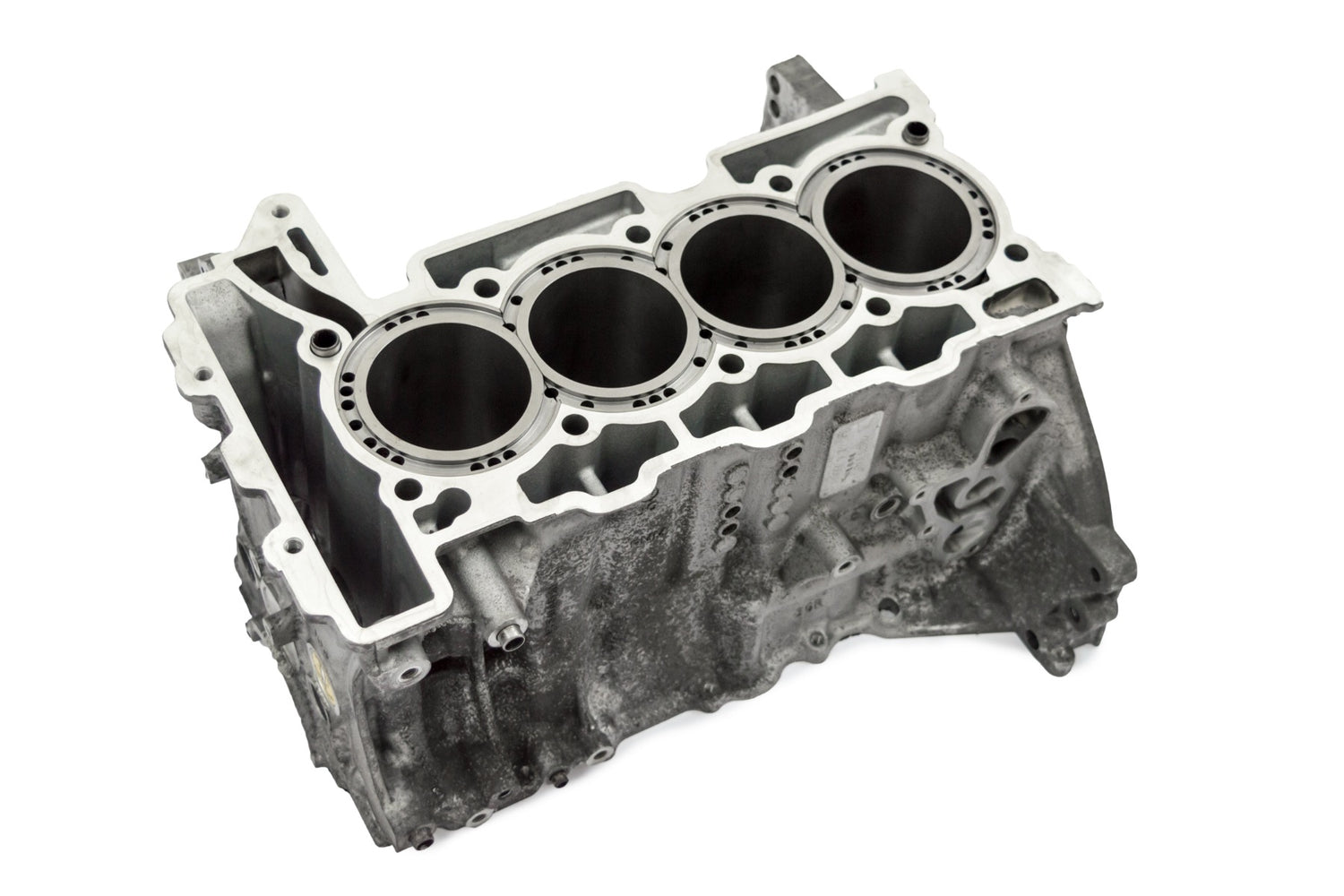

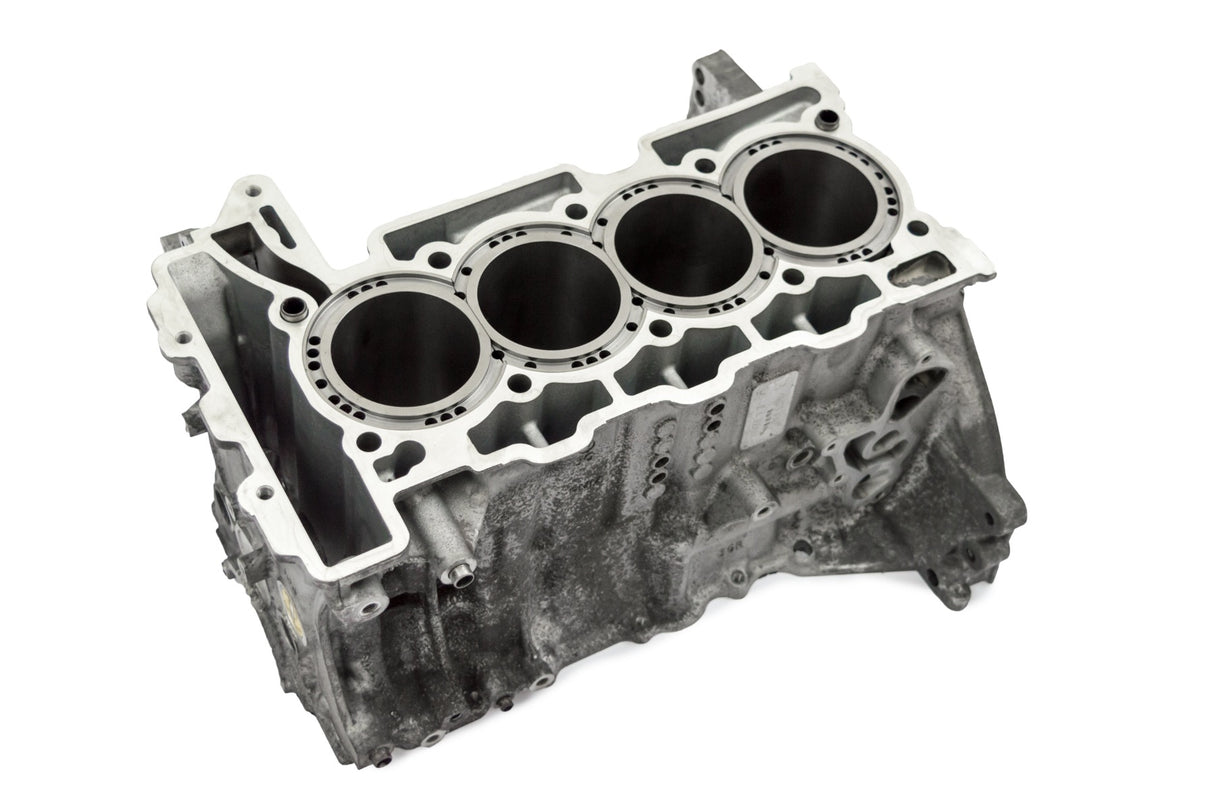

The limits for generation 2 tuning are being pushed further all the time. Increased boost pressures associated with high-powered, tuned vehicles means increased cylinder pressures. For MINI N14 owners aiming to push over 350bhp you may suffer from a warped or cracked block, this Darton MID closed deck solution will prevent this from happening allowing you to push more boost and achieve higher horsepower from your N14 1.6 turbo engine.

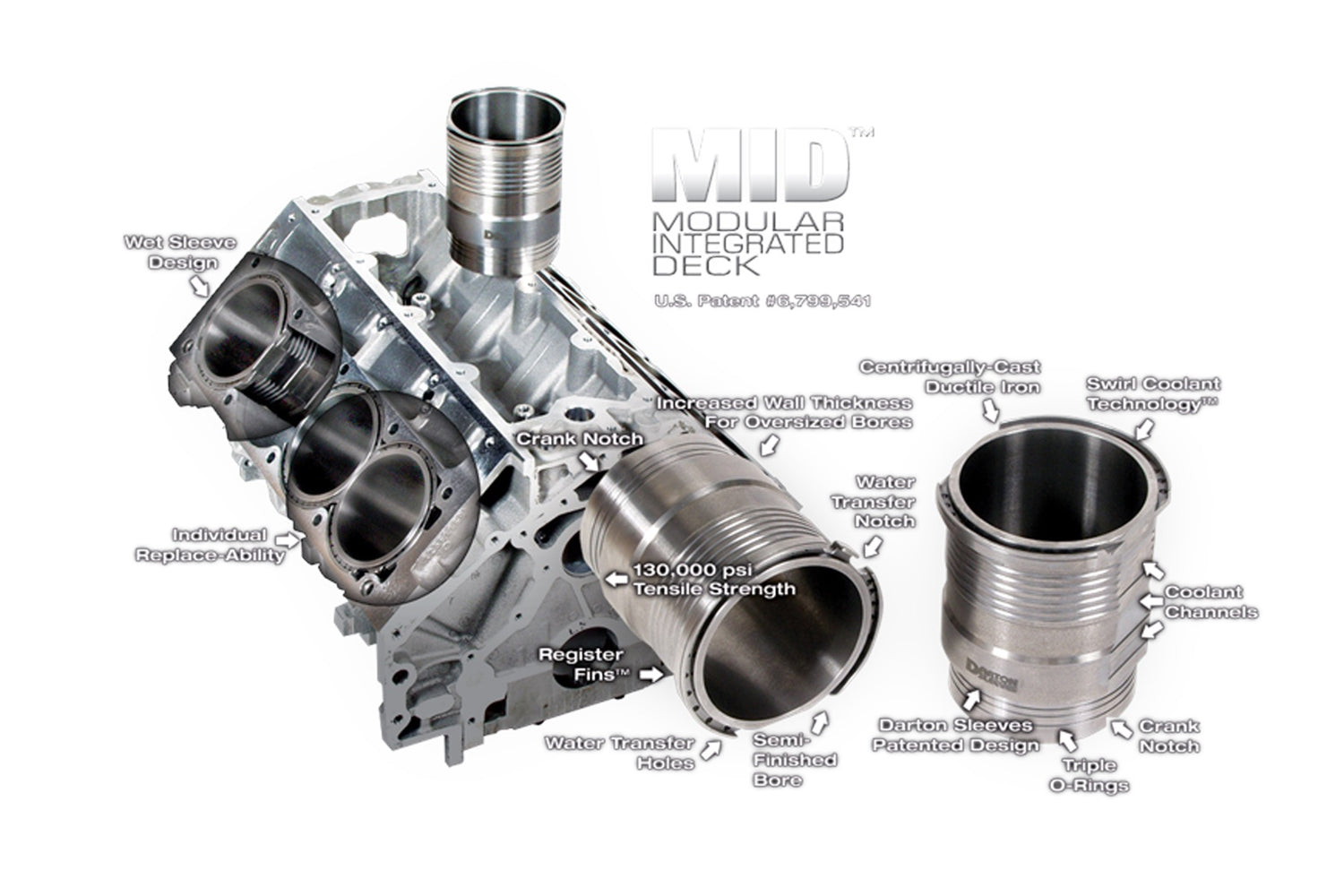

Lohen can help with fully machining your N14 block to accommodate the Darton sleeves to give you a Modular Integrated Deck (MID) that is serviceable and individually replaceable.

Darton is at the top of the game when it comes to block strengthening. Darton Sleeves have a huge 130,000 PSI tensile strength compared with a 30,000 PSI tensile strength of a cast iron block. This allows you to run your MINI Cooper S or JCW at higher boost pressures creating more power, reducing the risk of damaging your block.

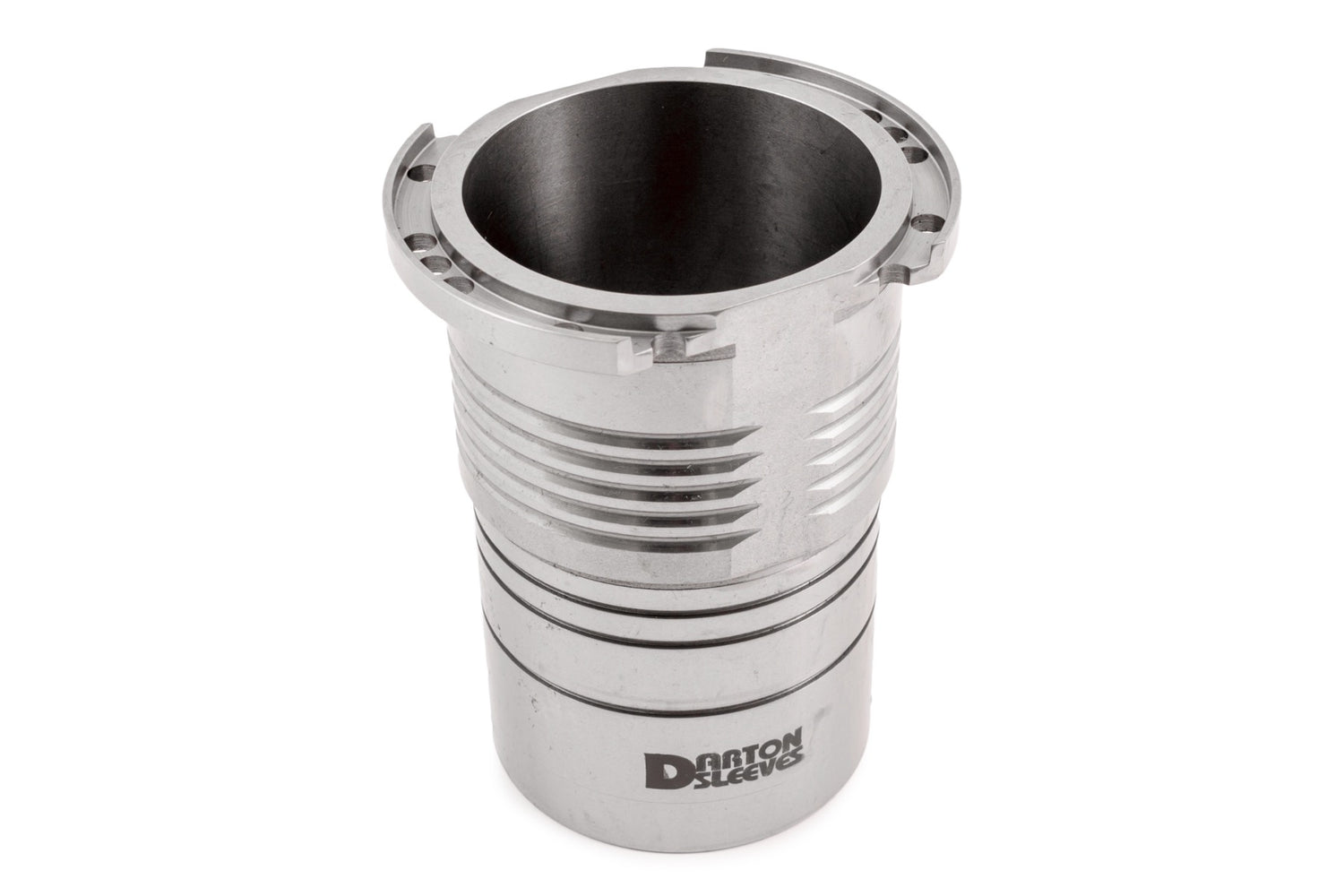

The Darton Sleeves use a wet sleeve design that offers better cooling over standard open deck designs. The Darton Sleeves feature ‘Swirl Coolant Technology’ for significantly improved heat transfer in the upper cylinder wall area. This improvement in cooling reduces detonation in the combustion chamber which is one of the most common causes of engine failure among high performance, high horsepower engines.

Please Note: Machining of the Darton sleeves will be required to install pistons.

What's in The Box

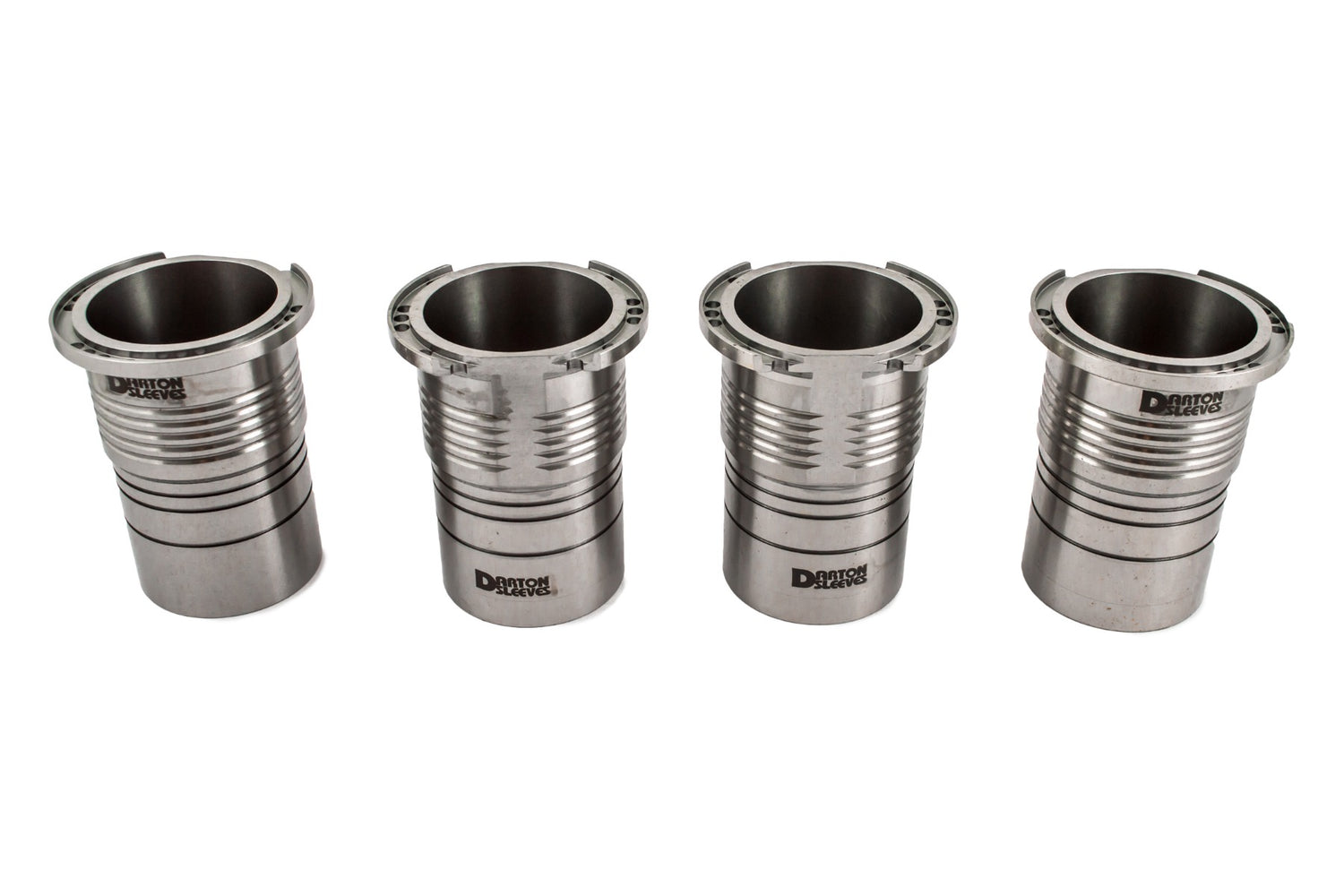

  • 4x Darton Sleeves for the MINI N14 engine

Fitting Details

Lohen offers professional, in-house fitting for all products at our workshop in Eccleshall, Staffordshire. Here are the important things you need to know:

Fitting Cost - Please contact us for costs of having these installed into your engine

Fitting Time - Please contact us for more information on lead times

Required Additional Items/Services - The block will need to be machined when installing these.

Lohen Recommends - N/A

FAQ's

Safe & Secure

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Darton Sleeves

Darton Sleeves Set For N14 MINI Engines

£1,500.00 GBP

The limits for generation 2 tuning are being pushed further all the time. Increased boost pressures associated with high-powered, tuned vehicles means increased cylinder pressures. For MINI N14 owners aiming to push over 350bhp you may suffer from a warped or cracked block, this Darton MID closed deck solution will prevent this from happening allowing you to push more boost and achieve higher horsepower from your N14 1.6 turbo engine.

Lohen can help with fully machining your N14 block to accommodate the Darton sleeves to give you a Modular Integrated Deck (MID) that is serviceable and individually replaceable.

Darton is at the top of the game when it comes to block strengthening. Darton Sleeves have a huge 130,000 PSI tensile strength compared with a 30,000 PSI tensile strength of a cast iron block. This allows you to run your MINI Cooper S or JCW at higher boost pressures creating more power, reducing the risk of damaging your block.

The Darton Sleeves use a wet sleeve design that offers better cooling over standard open deck designs. The Darton Sleeves feature ‘Swirl Coolant Technology’ for significantly improved heat transfer in the upper cylinder wall area. This improvement in cooling reduces detonation in the combustion chamber which is one of the most common causes of engine failure among high performance, high horsepower engines.

Please Note: Machining of the Darton sleeves will be required to install pistons.

Machining of the Darton sleeves will be required to install pistons.
